Historical radio beacons, Sweden 1950s

Radiofyrar i Sverige på 1950-talet - NDB, ILS

For historical information only, do not use for navigation or aviation purposes!

The following list contains the aeronautical radio beacons that were active in Sweden in the mid of the 1950s. All information is outdated and may not be used for navigational purposes.

In this time there were predominantly non-directional radio beacons (NDB). Ranges became less, but the first VORs came up.

The list in incomplete, as most of the military radio beacons (NDB, Eureka/Anita, BABS/Barbro) are missing

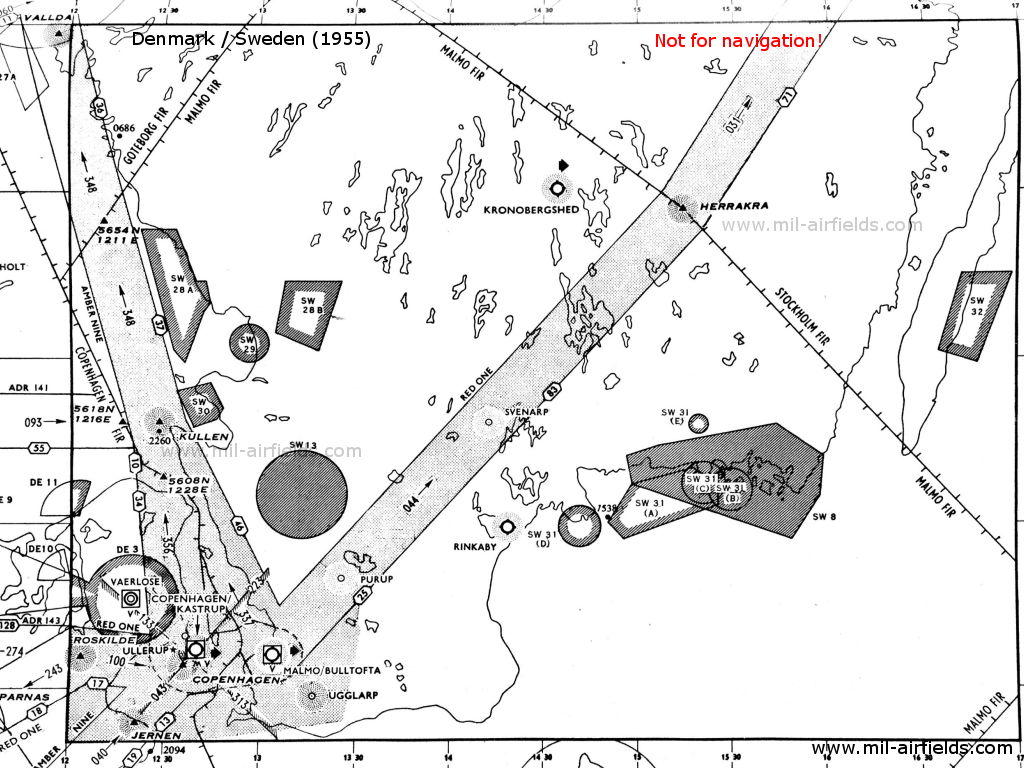

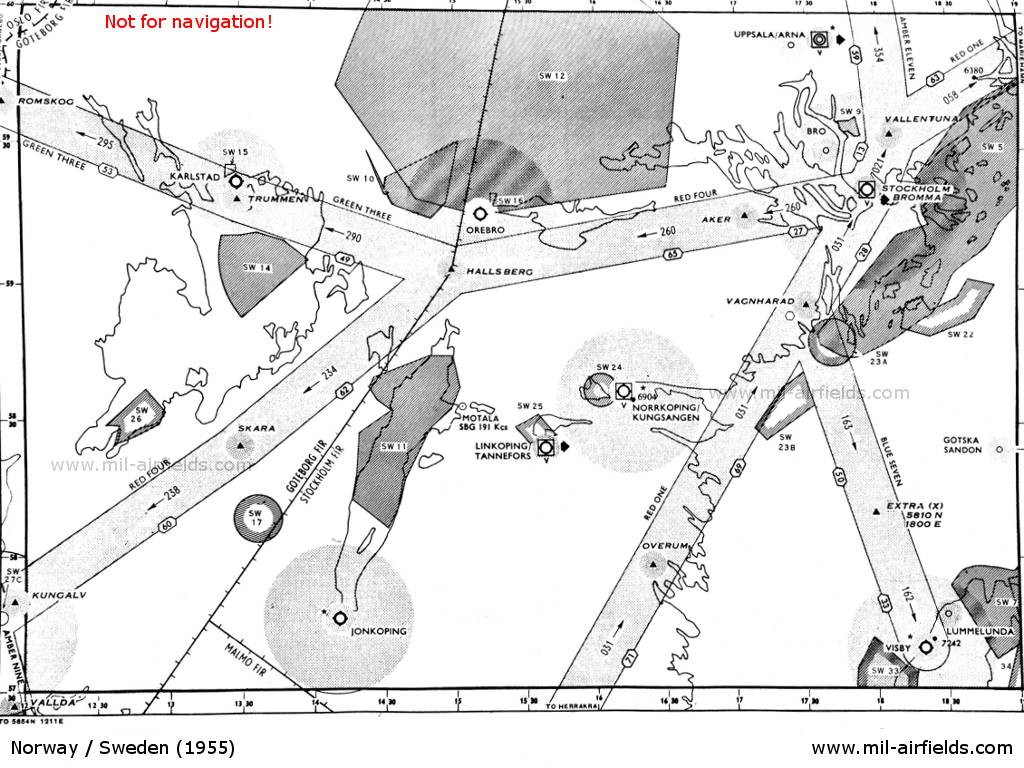

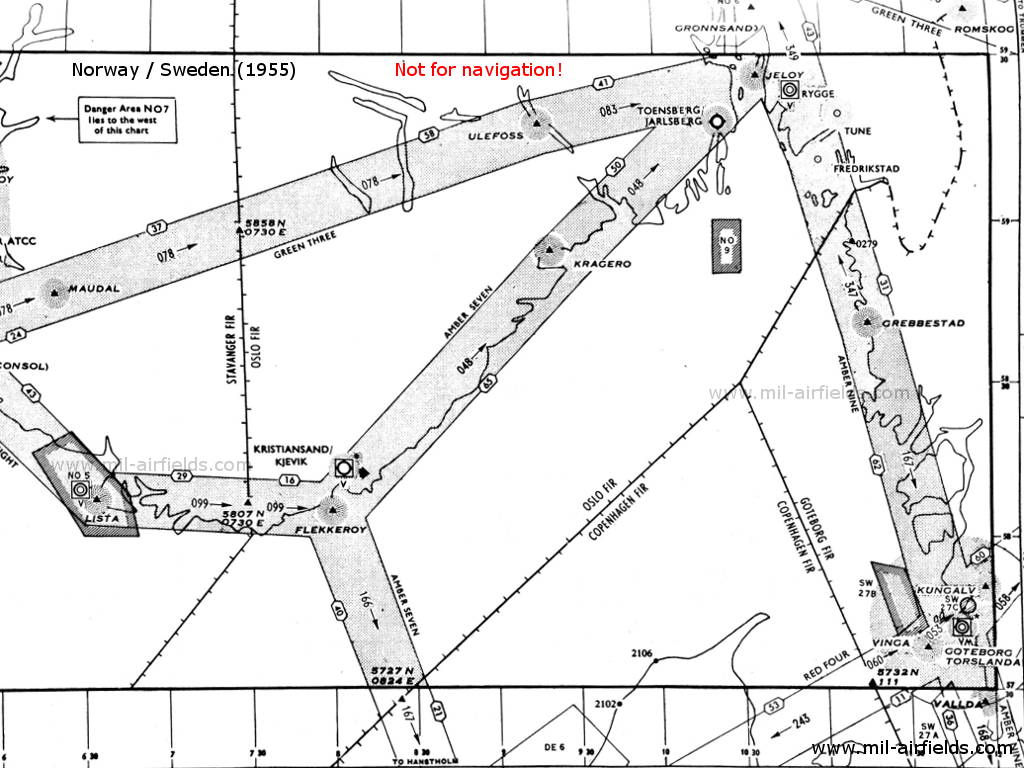

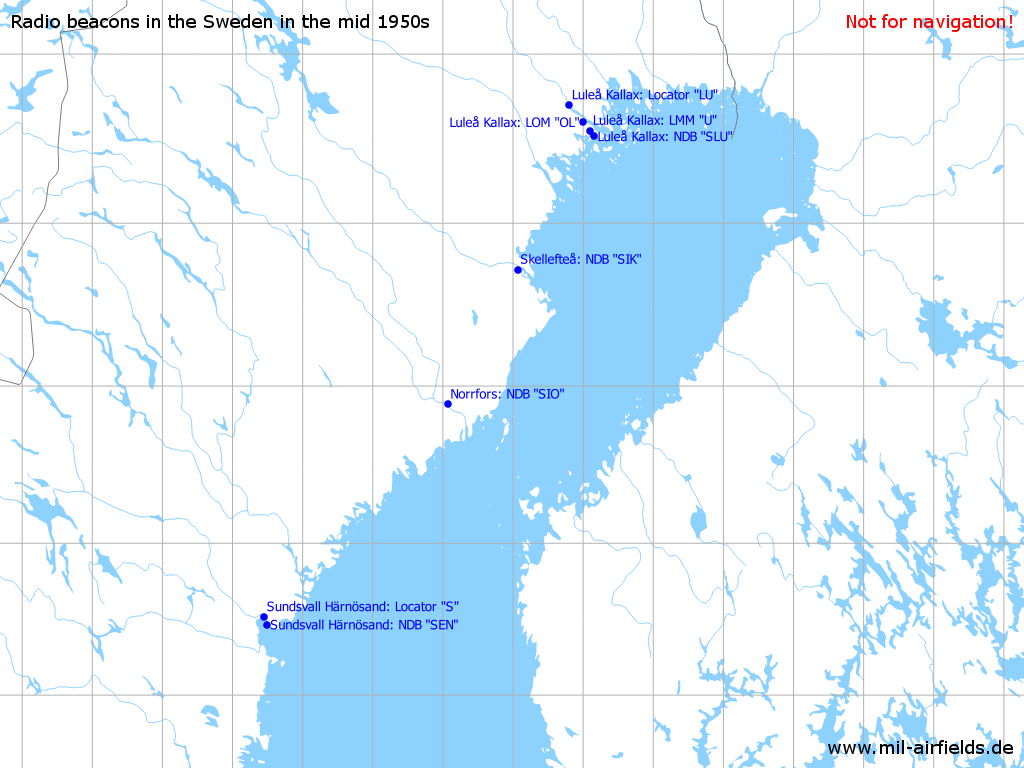

Radio beacons and airways

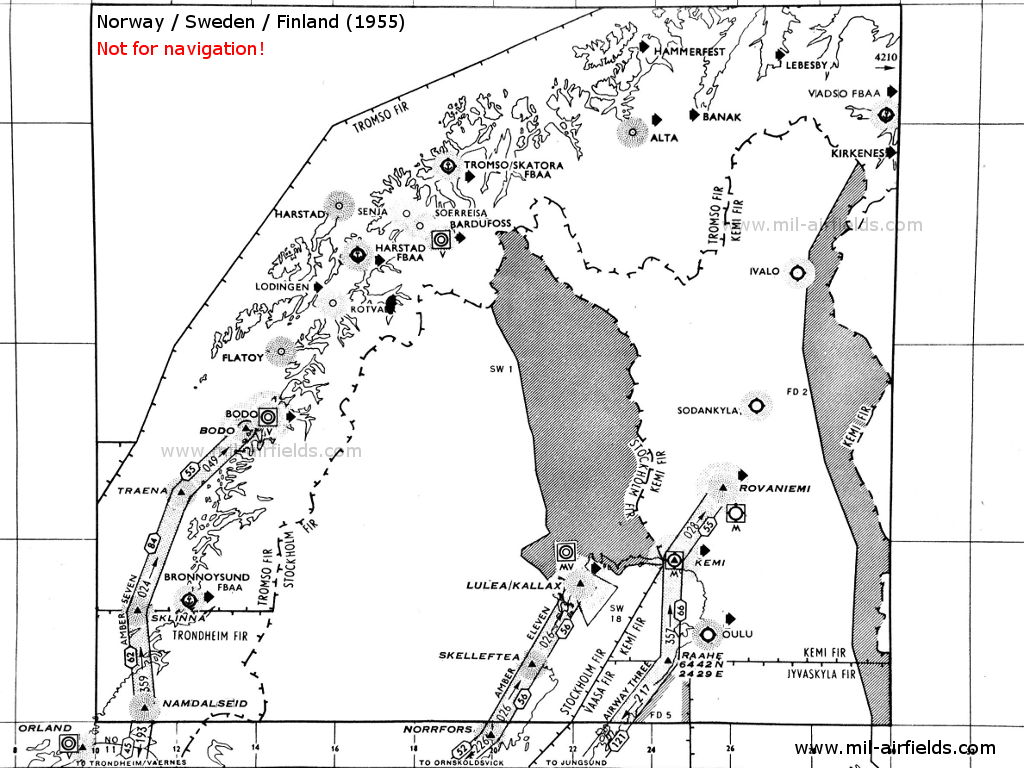

Radio beacons and airways in Sweden, 1
1 (Source: DoD)

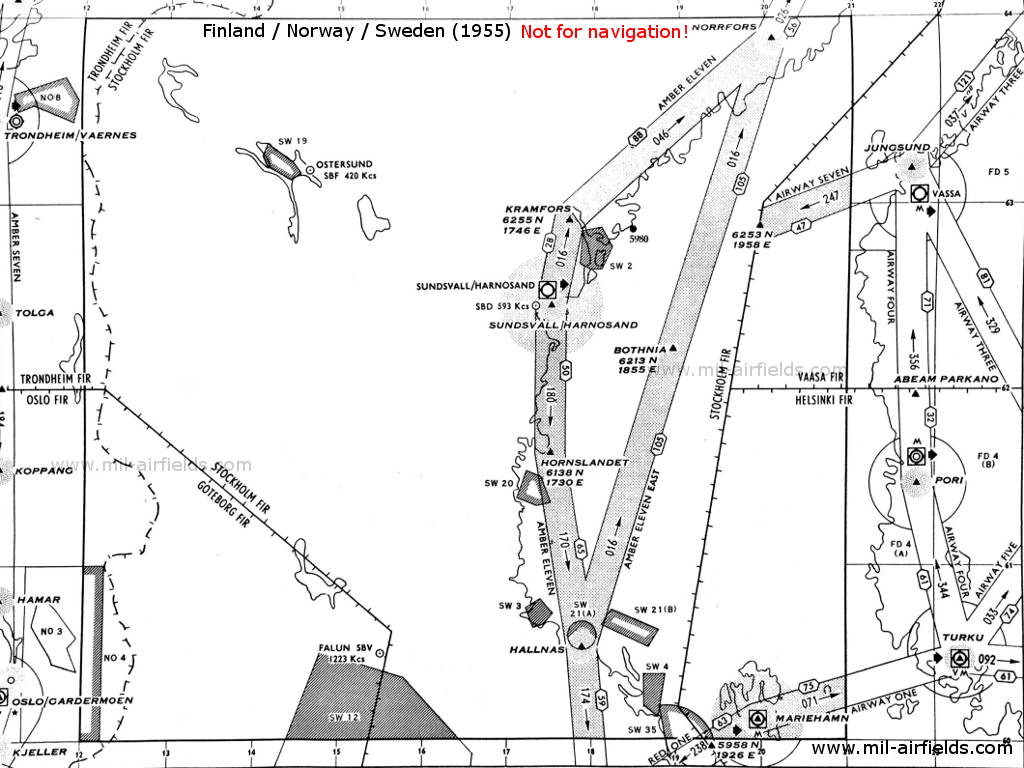

Radio beacons and airways in Sweden, 1
2 (Source: DoD)
Radio beacons and airways in Sweden, 1
3 (Source: DoD)
Radio beacons and airways in Sweden, 1
4 (Source: DoD)
Radio beacons and airways in Sweden, 1
5 (Source: DoD)

Explanations

Abbreviations

approx.approximately
civcivilcivil operator
GPGlide pathGlide path transmitter
ILSInstrument Landing System(Approach and landing aid)
IMInner MarkerMarker beacon just in front the runway
kHzKilohertz(Unit for frequency)
LLocatorNon-directional beacon for the approach
LLZLocalizerLocalizer transmitter
LMMLocator Middle MarkerCombination of Middle Marker and Locator
LOMLocator Outer MarkerCombination of Outer Marker and Locator
mMeter(Unit for length)
MHzMegahertz(Unit for frequency)
milmilitarymilitary operator
MMMiddle MarkerMarker beacon
NDBNon-directional beaconNon-directional beacon on long or medium waves
NMNautical Miles(Unit for length)
OMOuter MarkerMarker beacon
PRMGПРМГ Посадочная радиомаячная группаSoviet / russian military instrument landing system
RSBNРСБН Rадиотехническая система ближней навигацииSoviet / russian military radio navigation system
SBAStandard Beam ApproachApproach system, Lorenz system, predecessor of the ILS
THRThresholdRunway threshold (most often with number of runway)
transf.transformedCoordinates were converted from a different reference system, therefore there may be deviations.
VARVisual-Aural Rnange
VORVHF Omnidirectional Radio Range
WWatt(Unit for power)
WGS84World Geodetic System 1984(geospatial reference system, GPS coordinates)

Directory


For historical information only, do not use for navigation or aviation purposes!

Åkers styckebruk: Aker NDB
N5916 E01705 (approx.) Google Maps
SIB, 309.5 kHz, lower power
(Strängnäs). On airway Red Four (R4).

Bro: NDB
N5930 E01739 (approx.), 134°/11.9 NM to Bromma Google Maps
SEP, 385 kHz

Göteborg: Torslanda Airfield


Runway 04:
Göteborg Torslanda: Sandvik Locator
N5742 E01146 (approx.), 039°/0.49 NM to field Google Maps
S, 369 kHz
Operated on request.
Runway 22:
Göteborg Torslanda: ILS 22
GB, 110.3 MHz
To runway 22 (219°).
Göteborg Torslanda: LOM 22
N5746 E01152 (approx.), 220°/3.4 NM to THR 22 Google Maps
Locator: OG, 342 kHz
Outer Marker: Dashes, 75 MHz
Operated on request.
Göteborg Torslanda: LMM 22
N5744 E01149 (approx.), 220°/0.65 NM to THR 22 Google Maps
Locator: T, 324 kHz
Middle Marker: Dots Dashes, 75 MHz
Operated on request.
Göteborg Torslanda: IM 22
219°/0.04 NM to THR 22
Dots, 75 MHz

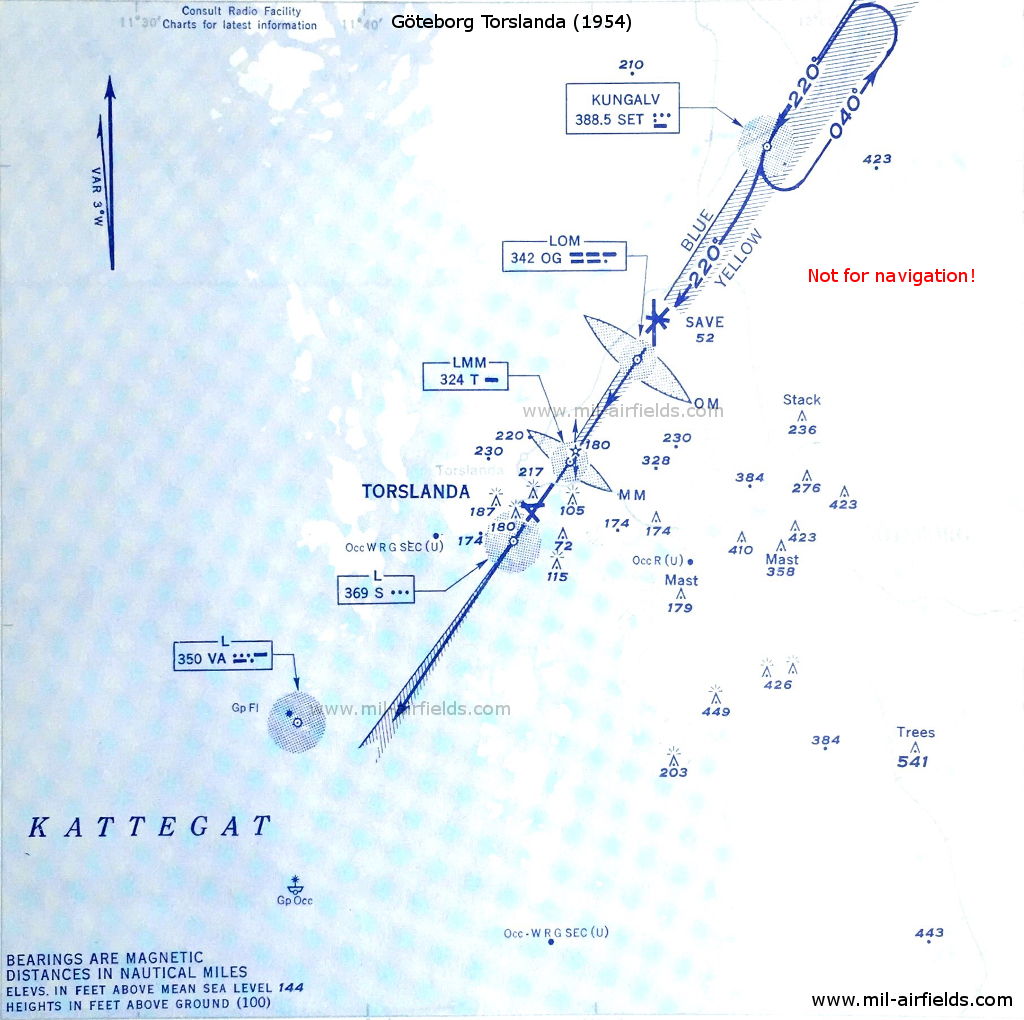

ILS approach to Göteborg Torslanda Airport in 1954
ILS approach to Göteborg Torslanda Airport in 1954 (Source: DoD)

Gotska Sandön: NDB
N5824 E01912 (approx.) Google Maps
GS, 395 kHz
Operated 0300 to 1900 and on request.

Grebbestad: NDB
N5842 E01115 (approx.) Google Maps
SIH, 277 kHz
On airway Amber Nine (A9).

Hällnäs: NDB
N6032 E01753 (approx.) Google Maps
SIN, 326 kHz
On airway Amber Eleven (A11).

For historical information only, do not use for navigation or aviation purposes!

Hallsberg: NDB
N5904 E01459 (approx.) Google Maps
SIR, 398 kHz
At the intersection of airway Green Three (G3) and Red Four (R4). Boundary between Göteborg FIR and Stockholm FIR.

Herrakra: NDB
N5657 E01515 (approx.) Google Maps
SIM, 367 kHz
On airway Red One (R1).

Jönköping: Airfield


Jönköping: Locator
N5747 E01412 (approx.), 217°/0.73 NM to field Google Maps
R, 325 kHz
Located at Rocksjon. Operated on request.
Jönköping: Locator
N5750 E01417 (approx.), 217°/5.18 NM to field Google Maps
OJ, 354 kHz
Located at Gisebo. Operated on request.

Karlstadt: Jakobsberg Airfield (Karlstad-Jakobsberg flygplats)


Karlstad: Locator
N5921 E01328 (approx.), 359°/0.55 NM to field Google Maps
K, 345 kHz
Operated on request.

Kronobergshed: Airfield


Kronobergshed: Locator
N5659 E01434 (approx.), 187°/1.2 NM to field Google Maps
KR, 328 kHz
(Alvesta). Operated on request to Malmö ACC.

Kullen: NDB
N5618 E01227 (approx.) Google Maps
KK, 344 kHz
On airway Amber Nine (A9).

Kungälv: NDB
N5750 E01157 (approx.), 217°/8.95 NM to Torslanda Google Maps
SET, 388.5 kHz
On airway Red Four (R4).

For historical information only, do not use for navigation or aviation purposes!

Linköping: Saab Airfield (Tannefors)


Linköping Tannefors: Locator
N5825 E01540 (approx.) Google Maps
TF, 590 kHz
Operated on request.

Luleå: Kallax


Luleå Kallax: Locator
N6542 E02148 (approx.), 136°/12 NM to field Google Maps
LU, 338 kHz
Operated on request.
Luleå Kallax: NDB
N6531 E02209 (approx.), 320°/1.68° to field Google Maps
SLU, 318 kHz
Operated on request. Northern end of airway Amber Eleven (A11).
Runway 14:
Luleå Kallax: ILS 14
LL, 110.3 MHz
To runway 14 (136°)
Luleå Kallax: LOM 14
N6536 E02200 (approx.), 136°/4.53 NM to field Google Maps
Locator: OL, 455 kHz
Outer Marker: Dashes, 75 MHz
Operated on request.
Luleå Kallax: LMM 14
N6533 E02206 (approx.), 136°/0.81 NM to field Google Maps
Locator: U, 306 kHz
Middle Marker: Dots Dashes, 75 MHz
Operated on request.

Lummelunda: NDB
N5747 E01830 (approx.) Google Maps
SEK, 351 kHz
Located on the island of Gotland.

Malmö: Bulltofta Airport


Runway 06:
Malmö Bulltofta: LOM 06
N5534 E01258 (approx.), 060°/3.87 NM to field Google Maps
Locator: HY, 276 kHz
Outer Marker: Dashes, 75 MHz
On backbeam of the ILS 24. Operated on request.
Malmö Bulltofta: Locator
N5636 E01302 (approx.), 060°/0.77 NM to field Google Maps
S, 337 kHz
Operated on request.
Runway 24:
Malmö Bulltofta: ILS 24
BT, 109.5 MHz
To runway 24 (240°)
Malmö Bulltofta: LOM 24
N5539 E01311 (approx.), 240°/3.84 NM to field Google Maps
Locator: OT, 351 kHz
Outer Marker: Dashes, 75 MHz
Operated on request.
Malmö Bulltofta: MM 24
240°/0.77 NM to THR 24
Dots Dashes, 75 MHz
Malmö Bulltofta: Locator
N5537 E01306 (approx.), 240°/0.47 NM to field Google Maps
B, 337 kHz
Operated on request.
Malmö Bulltofta: IM 24
240°/0.17 NM to THR 24
Dots, 75 MHz

Norrfors: NDB
N6353 E02004 (approx.) Google Maps
SIO, 364 kHz
(Umeå). On airway Amber Eleven (A11). Operated from 0500 to 2200.

Norrköping: Kungsängen Airfield


Runway 27:
Norrköping: ILS 27
NK, 109.5 MHz
To runway 27 (270°)
Norrköping: LOM 27
N5835 E01623 (approx.), 272°/3.89 NM (or 4.4 NM?) to THR 27 Google Maps
Locator: ON, 324 kHz
Outer Marker: Dashes, 75 MHz
Located at Konungsund. Operated on request.
Norrköping: LMM 27
N5835 E01617 (approx.), 272°/0.52 NM to THR 27 Google Maps
Locator: K, 377 kHz
Middle Marker: Dots Dashes, 75 MHz
Located at Dagsberg. Operated on request.
Approach to Norrköping Kungsängen 1953
Approach to Norrköping Kungsängen in 1953 (Source: DoD)

Örebro: Gustavsvik Airfield (Örebro flygfält, Gustavsviksfältet)


Örebro: Locator
N5915 E01515 (approx.), 274°/0.65 NM to field Google Maps
A, 335 kHz
Operated on request.

For historical information only, do not use for navigation or aviation purposes!

Överum: NDB
N5758 E01624 (approx.) Google Maps
SIX, 346 kHz
(Västervik). On airway Red One (R1).

Purup: NDB
N5550 E01326 (approx.) Google Maps
SIP, 375 kHz
On airway Red One (R1).

Rinkaby: Airfield (Åhus)


Rinkaby: Locator
N5600 E01420 (approx.), 232°/1.14 NM to field Google Maps
RI, 363 kHz
Operated on request.

Skara: NDB
N5825 E01327 (approx.) Google Maps
SIU, 317 kHz, low power
On airway Red Four (R4).

Skellefteå: NDB
N6443 E02104 (approx.) Google Maps
SIK, 324 kHz
On airway Amber Eleven (A11). Operated from 0500 to 2200.

Spånga: NDB
N5923 E01755 (approx.) Google Maps
SBX, 344 kHz

Stockholm: Bromma Airfield


Stockholm Bromma: NDB
N5918 E01811 (approx.), 295°/7.56 NM to field Google Maps
SN, 335 kHz
Runway 13:
Stockholm Bromma: ILS 13
SO, 110.3 MHz
To runway 13 (125°)
Stockholm Bromma: Skalby Range
N592350 E0174910 (approx.), 125°/4.0 NM to THR 13 Google Maps
SK, 364 kHz
In the early 1950s, Skalby Range was at the location of the Outer Marker runway 13. The four predefined courses to the range were 026°, 125°, 206° and 305°. It has been later replaced by the locator "OS".
Stockholm Bromma: LOM 13
N5924 E01750 (approx.), 126°/3.54 NM to THR 13 Google Maps
Locator: OS, 364 kHz
Outer Marker: Dashes, 75 MHz
Located in Skälby, Järfälla.
Stockholm Bromma: LMM 13 (Flysta)
N5922 E01755 (approx.), 125°/0.55 NM to THR 13 Google Maps
Locator: B, 375 kHz
Middle Marker: Dots Dashes, 75 MHz
Sundby. Operated on request.
Stockholm Bromma: IM 13
125° to THR 13
Dots, 75 MHz
Runway 31:
Stockholm Bromma: LOM 31 (Tanto)
N5919 E01803 (approx.), 305°/3.41 NM to field Google Maps
Locator: TA, 322 kHz
Södermalm. On back course of ILS 13.
Stockholm Bromma: LMM 31
N5921 E01759 (approx.), 305°/0.75 NM to THR 31 Google Maps
Locator: U, 344 kHz
Middle Marker: Dots Dashes, 75 MHz
On back course of ILS 13.

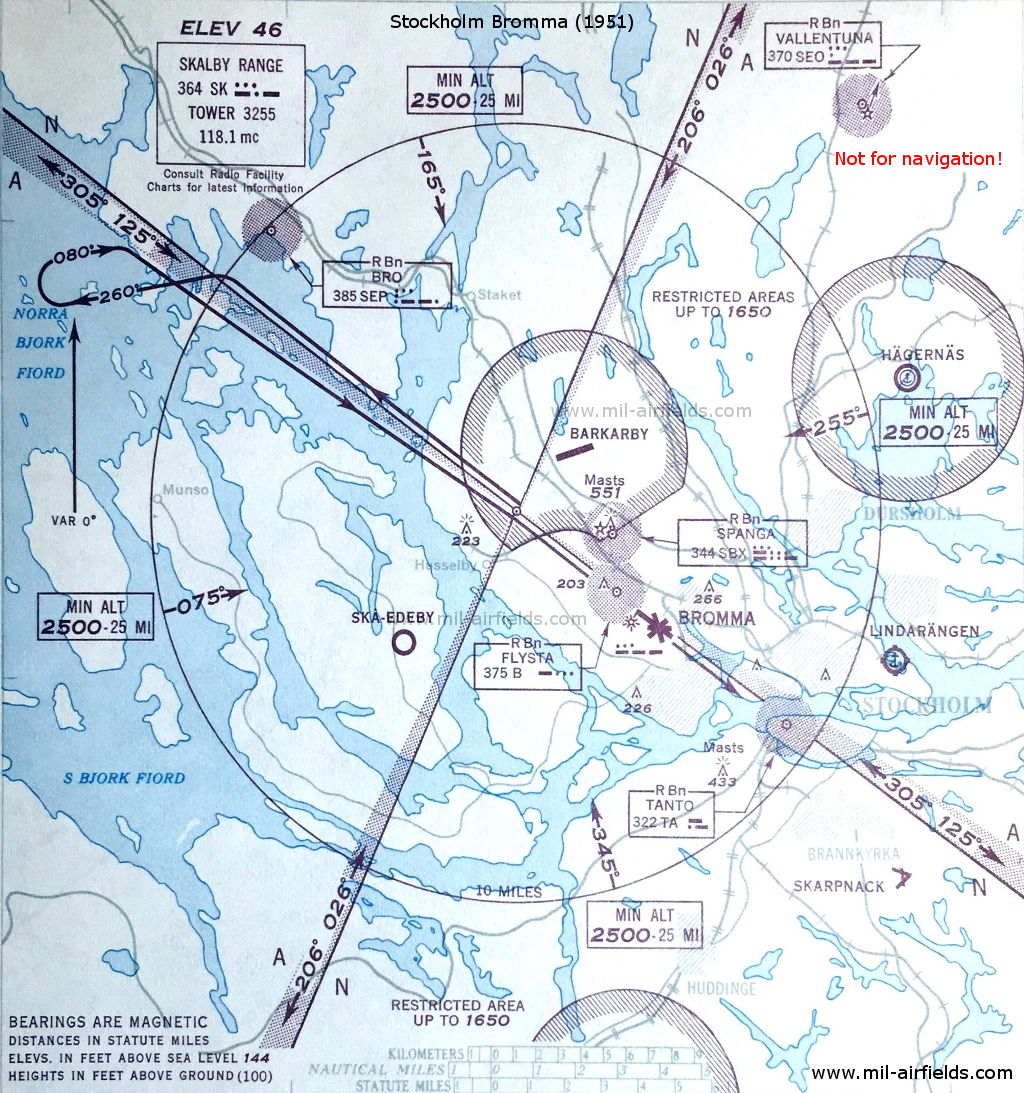

Range approach to Stockholm Bromma Airport, Sweden, 1951
Range approach to Stockholm Bromma Airport in 1951 (Source: DoD)

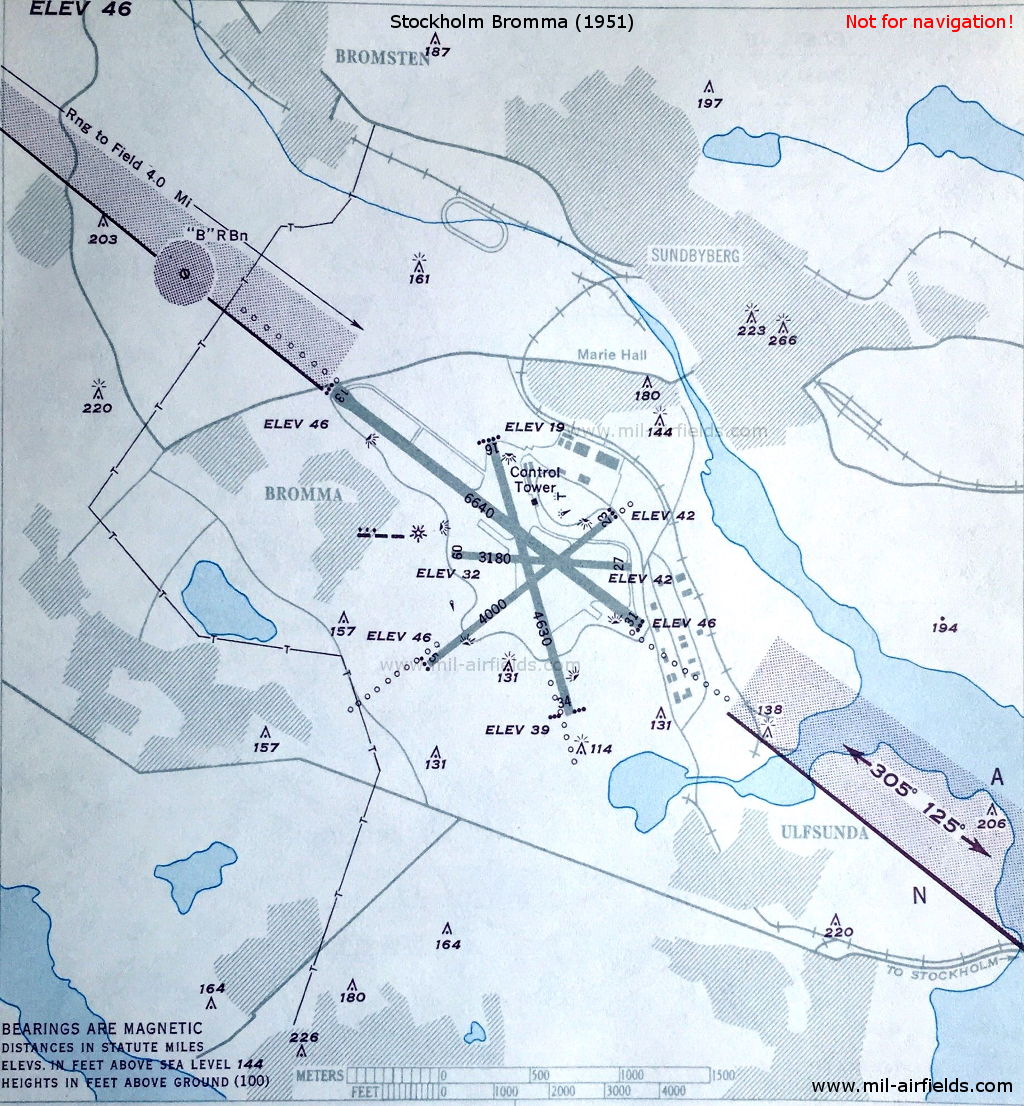

Map of Stockholm Bromma Airport in 1951
Stockholm Bromma Airport in 1951 - The Flysta "B" NDB is located at the beginning of the approach lights to runway 13 in the west. The course 305° to Skalby "SK" Range 4 miles away leads across the airfield. (Source: DoD)

For historical information only, do not use for navigation or aviation purposes!

Sundsvall: Timrå Airport (Sundsvall–Härnösand flygplats)


Sundsvall Härnösand: Locator
N6231 E01727 (approx.), 341°/0.46 NM to field Google Maps
S, 350 kHz
Operated on request.
Sundsvall Härnösand: NDB
N6228 E01729 (approx.), 347°/4.07 NM to field Google Maps
SEN, 388 kHz
Located at Alnön. On airway Amber Eleven (A11). Operated from 0500 to 2200.

Svenarp: NDB
N5619 E01413 (approx.) Google Maps
SV, 275 kHz
On airway Red One (R1).

Trummen: NDB
N5919 E01328 (approx.), 359°/2.46 NM to Karlstad Jakobsberg Google Maps
SEM, 323 kHz
On airway Green Three (G3).

Ugglarp: NDB
N5528 E01317 (approx.), 320°/10.8 NM to Malmö Bulltofta Google Maps
UG, 358 kHz, low power

Uppsala: Airfield (Ärna Flygplats)


Uppsala Ärna: Locator
N5952 E01724 (approx.), 076°/5.4 NM to field Google Maps
LP, 438 kHz
Operated from 0700 to 1600.
Uppsala Ärna: NDB
N5955 E01735 (approx.), 360°/0.49 NM to field Google Maps
SLP, 438 kHz
Located near Vänge.

Vagnhärad: NDB
N5857 E01730 (approx.) Google Maps
SIV, 358 kHz
At the intersection of airway Blue Seven (B7) and Red One (R1).

Vallda: NDB
N5728 E01156 (approx.) Google Maps
SIL, 378 kHz
On airway Amber Nine (A9).

For historical information only, do not use for navigation or aviation purposes!

Vallentuna: NDB
N5933 E01806 (approx.), 203°/12.4 NM to Bromma Google Maps
SEO, 370 kHz
At the intersection of airway Amber Eleven (A11) and Red One (R1).

Västerljung: VOR
N5855 E01727 (approx.), 217°/2.32 NM to Vagnharad NDB Google Maps
VJ, 112.7 MHz
On test.

Vinga: NDB
N5738 E01136 (approx.), 053°/7.0 NM to Torslanda Google Maps
VA, 350 kHz
Located on Vinga island, west of Göteborg.

Visby: Airfield


Visby: NDB
N5736 E01823 (approx.), 339°/3.7 NM to field Google Maps
VL, 364 kHz
End of airway Blue Seven (B7). Operated on request.
Runway 21:
Visby: ILS 21
VB, 110.3 MHz
To runway 21 (207°). Operated on request.
Visby: LOM 21
N5743 E01824 (approx.), 207°/4.0 NM to THR 21 Google Maps
Locator: OV, 343 kHz
Outer Marker: Dots Dashes, 75 MHz
Operated on request.
Visby: LMM 21
N5740 E01821 (approx.), 207°/0.62 NM to THR 21 Google Maps
Locator: B, 379 kHz
Middle Marker: Dots Dashes, 75 MHz
Operated on request.

For historical information only, do not use for navigation or aviation purposes!

Maps

Not all labels are shown
Not all labels are shown

Recommended

Image credits are shown on the respective target page, click on the preview to open it.

Related Topics

Sweden: Air Bases and Military Airfields
