Marseille Marignane Airport

Aéroport Marseille Provence

Historical approach and aerodrome charts

Aéroport Marseille Provence - Cartes d'approche historiques

For historical information only, do not use for navigation or aviation purposes!
CoordinatesN432616 E0051247 (WGS84) Google Maps
Location indicatorLFML
Map with location of Marseille Marignane Airport, France

In the 1930s

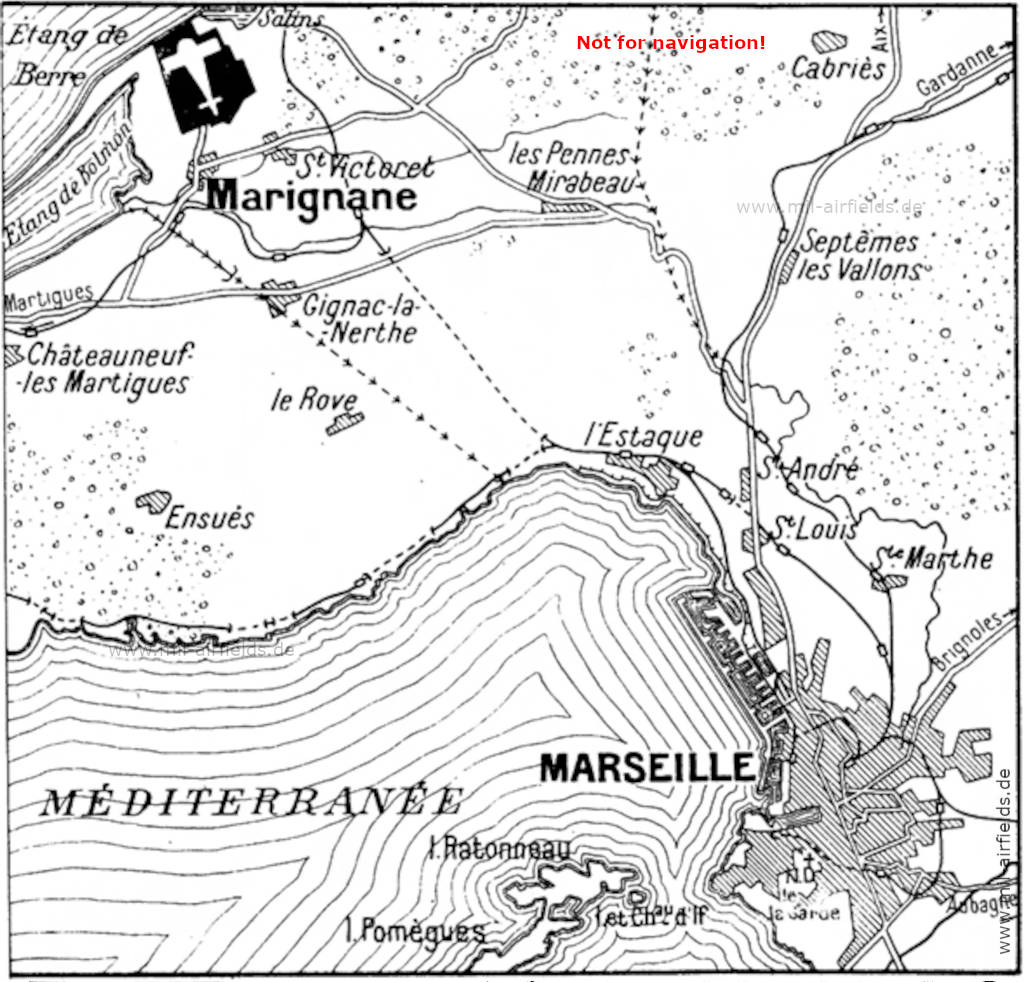

Map Marseille 1931
Map from 1931 (Source: Internationales Flughandbuch 1931)
Marseille Airfield in 1931
Marseille Airfield in 1931 (Source: Internationales Flughandbuch 1931)

In the 1940s

Aerial image Marseille Marignane Airport, France 1945
Aerial image (January 1945) - Viewing direction is northeast. On the left edge is the sea plane base at the Étang de Berre lagoon. The image was classified as "Restricted". (Source: US DoD)
Aéroport Marseille, photo aérienne, 1945
Enlargement - In the right half of the picture some airplanes are visible. (Source: US DoD)
Marseille Marignane Airport in World War 2, January 1945
Enlargement - Southeastern part. (Source: US DoD)

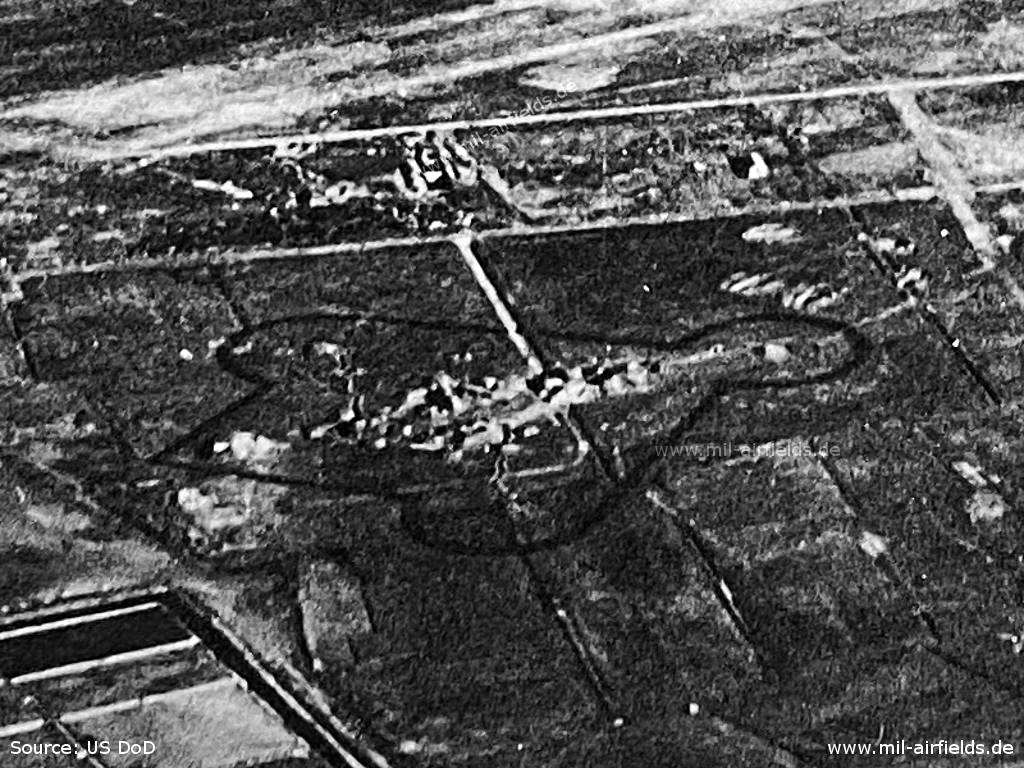

Marseille Marignane, January 1945
Enlargement: Area with a noticeable shape - In the southwestern part. (Source: US DoD)
Marseille Marrignane Airport: Aerial view January 1945
Aerial view 07 January 1945 - Viewing direction southwest. (Source: US DoD)
Movement area Marseille Marrignane Aerodrome, 1945
Enlargement: Movement area - On the right edge of the picture there is an unpaved runway. The circle to the right of the centre of the picture contains the inscription "Marseille". (Source: US DoD)
Runways at Marseille Airfield
Enlargement: Runways - On the left the unpaved runway, on the right the paved one, on which obviously construction work is taking place. (Source: US DoD)
Aerial view of Marseille Seaplane Station, France
Enlargement: Seaplane base (Source: US DoD)

In the 1950s

NDB approach chart runway 14R Marseille Marignane, 1951
NDB approach runway 14R (March 1951) - With anchor symbols, the map shows two seaplane bases in the Étang de Berre: one immediately north of the Marignane airfield, the second northwest of it. (Source: US DoD)
Map Marseille Marignane Airport, France 1951
Airport map (March 1951) - There are two runways - 140/320: length 1996 m (6550 feet), 140/320: length 1649 m (5410 feet). (Source: US DoD)
Range approach chart runway 14 Marseille Marignane Airport, 1954
Range approach runway 14 (April 1954) (Source: US DoD)
Aerodrome chart Marseille Marignane France 1954
Aerodrome (April 1954) - Now these two runways are shown - 140/320: length 2000 m, width 48 m (6561 feet x 157 feet), 140/320: length 1650 m, width 40 m (5413 feet x 131 feet). (Source: US DoD)
ILS approach chart runway 14R Marseille Marignane Airport, 1954
ILS approach runway 14R (July 1954) (Source: US DoD)
Airport chart Marseille Marignane France 1954
Airport map (July 1954) (Source: US DoD)

In the 1960s

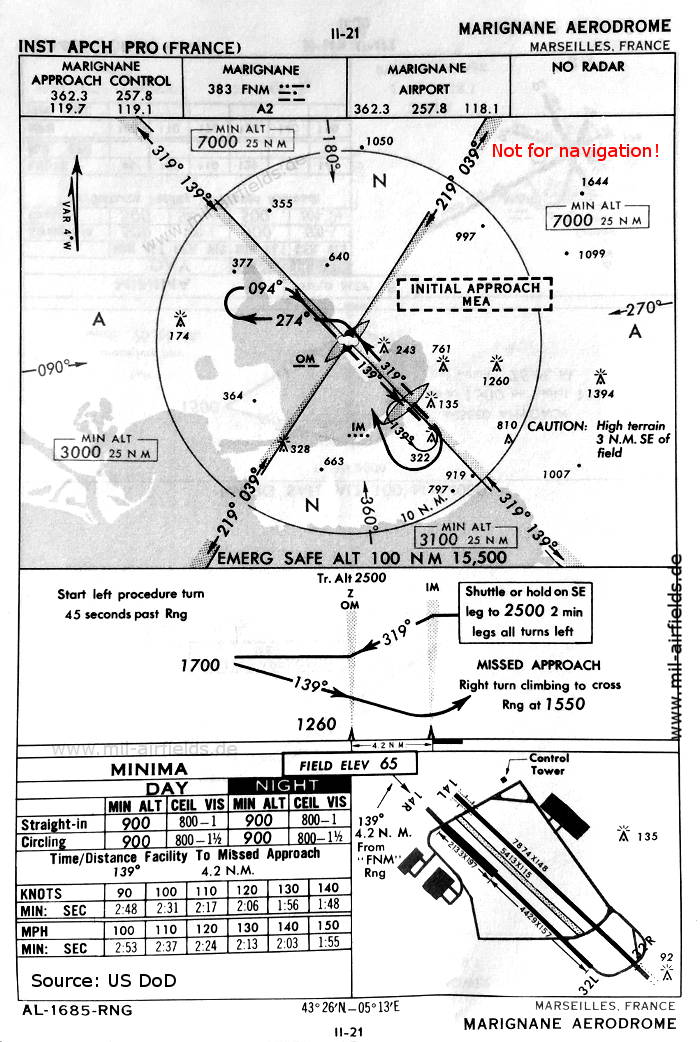

Range approach runway 14R Marseille Marignane, France 1960
Range approach runway 14R (October 1960) - The Range beacon has the ident "FNM" and emits the four displayed guiding beams. (Source: US DoD)
ILS approach chart runway 14L Marseille Marignane Airport, France 1960
ILS approach runway 14L (October 1960) - There are three runways - 14L/32R: length 2400 m, width 45 m (7874 feet x 148 feet), 14R/32L: length 2000 m, over a length of 650 m (2133 feet) the width is 60 m (197 feet), over a length of 1350 m (4429 feet), the width is 48 m (157 feet). Between both, there is an unpaved runway: length 1650 m, width 35 m (5413 feet x 115 feet). (Source: US DoD)

In the 1970s

Satellite image Marseille Airport 1976
Satellite image from 14 January 1976 - The image was taken from a US reconnaissance satellite and was previously subject to strict secrecy. (Source: U.S. Geological Survey)

In the 1980s

Aéroport Marseille Marignane on a map 1981
Marseille Marignane Airport on a map of the US Department of Defense from 1981 (Source: ONC F-2 (1981), Perry-Castañeda Library Map Collection, University of Texas at Austin)

Index to the objects shown on the maps

Aerodromes / Aérodromes:

  • Aix Les Milles
  • Berre
  • Istres Le Tube
  • Le Castellet
  • Marseille Marignane
  • Salon-de-Provence, Salon Eyguières, Salon-La Jasse

Radio beacons / Radiophares aéronautiques:

  • Aix Les Milles NDB
  • Istres Range "FNI", "LT"
  • Marignane Range "FNM", NDB "MN", "FNM5", ILS "ML", Outer Marker, Inner Marker
  • Martigues VORDME
  • Trets VOR

Air traffic control / Contrôle de la circulation aérienne / Communications:

  • Marignane Approach Control, Marignane Airport, Marignane DF "FNM2"

Places:

  • Aurons
  • Cabriès, Carry-le-Rouet, Châteauneuf-les-Martigues
  • Éguilles, Ensuès-la-Redonne, Étang de Berre, Étang de Bolmon
  • Fos-sur-Mer
  • Gignac-la-Nerthe, Golfe du Lion
  • Île Ratonneau, Île Pomègues, Istres
  • L'Arc, La Garotte, Lambesc, Le-Rove, Les-Pennes-Mirabeau
  • Marseille, Marignane, Martigues, Merle, Miramas
  • Port-de-Bouc
  • Salon de Provence, Saint-André, Saint-Cannat, Saint-Louis, Saint-Marthe, Saint-Victoret, Septèmes-les-Vallons, Sausset-les-Pins

Source for all maps, if not marked otherwise: US Department of Defense (US DoD)
