The following information is taken from CIA reports:
Report from 1947 (?)
Ljubljana airport in a CIA report, around 1947
|1||Lubricant stores (grease and oil)|
|2||Underground gasoline stores|
|3||Hangars used for storage purposes|
|6||Officers' Club and other offices|
|8||Entrance to field|
|11||Observation room for civil lines|
|x||Permanent guard posts|
|- - -||Area enclosed by a wire fence|
(a) The headquarters of an unidentified air division is located on the Ljubljana field with two dependent squadrons. The commander of the division detachment is a Major N..., a Slovene of Austrian origin. He is a former member of King Peter's Air Force and is about 42 years old. The planes belonging to the detachment were left by a Russian unit which operated in the Balkans during the war.
(1) The first squadron with 16 Yak-3 planes is commanded by Lt. B..., a Croat and former pilot of King Peter's Air Force. During the early part of the war was in Africa with the 351st Squadron which was later transfered to Zemunik. He is about 27 years old. The squadron has a total of 40 NCOs and specialists, some of whom are former German soldiers who were captured in Africa and were later transferred tp Tito Partisan Bands.
(2) The Sturmovik squadron with 20 planes is commanded by Croat Captain R..., who served under King Peter and under Pavelic. During the war he was sent to the Eastern Front with a Croat squadron which had been incorporated into the Luftwaffe. He either deserted to or was captured by the Russians and was repatriated before the end of the war. Most of the pilots in the squadron are Croats and former members of the Pavelio Air Force.
(b) The radio station is manned by eight NCO operators under the command of a 2nd lieutenant
(c) The motor pool contains about ten vehicles, an ambulance, and a fire engine which are driven and serviced by a crew of 60 soldiers.
(d) The Service Company comprises about 120 men. Its task is to provide a guard detail for the field and to supervise the work done by German PWs.
(e) There a no anti-aircratf emplacements on or around the field. Several small caliber anti-aircraft guns are stored in the hangars and some of these are placed around the field at night only.
Soruce: CIA RDP82-00457R000600190009-0
Report from 1948 (?)
Located two kilometers east of Ljubljana on the north side of the Ljubljana-Zagreb railroad line. The field from northwest to southeast is approximately 1.200 meters long, and could easily be enlarged to the west. The average width of the airfield is 500 meters. The field has a capacity of 150 fighter planes, but thus far not more than 70 planes have been stationed on it at one time. Surface of the field is covered with grass and the ground is very hard, with a layer of only 30 cm of earth on a solid conglomerate. The field is surrounded by a barbed wire fence, two meters high. The main guarded entrance is in the northwest corner of the field, and there is a guarded entrance in the south.
2. Airfield altitude
2..7 (figure illegible) meters above sea level.
As of February 1948, 15 captured German training planes, six of which are Fieseler-Storch's, were parked in hangar 315; ten captured German Messerschmitts, type 109, were parked in hangar 316; ... (number illegible) Russian one-engine fighter planes (type unspecified) were parked in hangar 317; and three Russian three-engine passenger or transport planes (type unspecified) and two U.S. four-engine bombers (type unspecified) were parked in hangar 408.
In one of the hangars were ten Fieseler-Storchs and four Junkers JU-88s.
No Soviet airforce personnel or instructores were attached to this airfield as of February 1948.
5. Guard and Anti-Aircraft Defense
Two MG companies equipped with 18 double-barreled Zbrojevka (Czech) machine guns are attached and placed in unspecified locations on the airfield. There are two AA batteries, one located along the Ljubljana-Kamnik railroad line, close to the village of Jezica, and the second on Golovec Hill at a site known as Crni-Hrid.
6. Operations Tower, Reflectors and Sirens
The airfield as a mobile captured German radio goniometer. There is a siren installed on top of each of the two barracks, and two reflectors on the hangar roof. The airfield receives its electrical power from the Slovene State power line.
The Ljubljana airfield has only one large hangar which was rebuilt by the Italien forces in 1942 after it had been destroyed by the retreating Yugoslavs in 1941. The hangar is approximately 250 x 60 meters and is divided into eight sections. Each section has its own entrance which faces south. Two of the sections are shops for minor aircraft repairs, and another section is used as a deport for spare parts and tools.
8. POL Dump
An unspecified amount of 50-gallon drums are located in the tool and aircraft spare parts depot, while the airfield POL dump is located in the nearby woods about 200 yards north of the hangar.
Two barracks located on the airfield are one-story brick and wooden buildings. They house approximately 150 personnel each, including pilots and mechanics, as well as the office of the airfield commander. Personnel of the two MG companies who are in charge of guarding the airfield, are billeted about 500 yards northeast of the hangar in three small barracks.

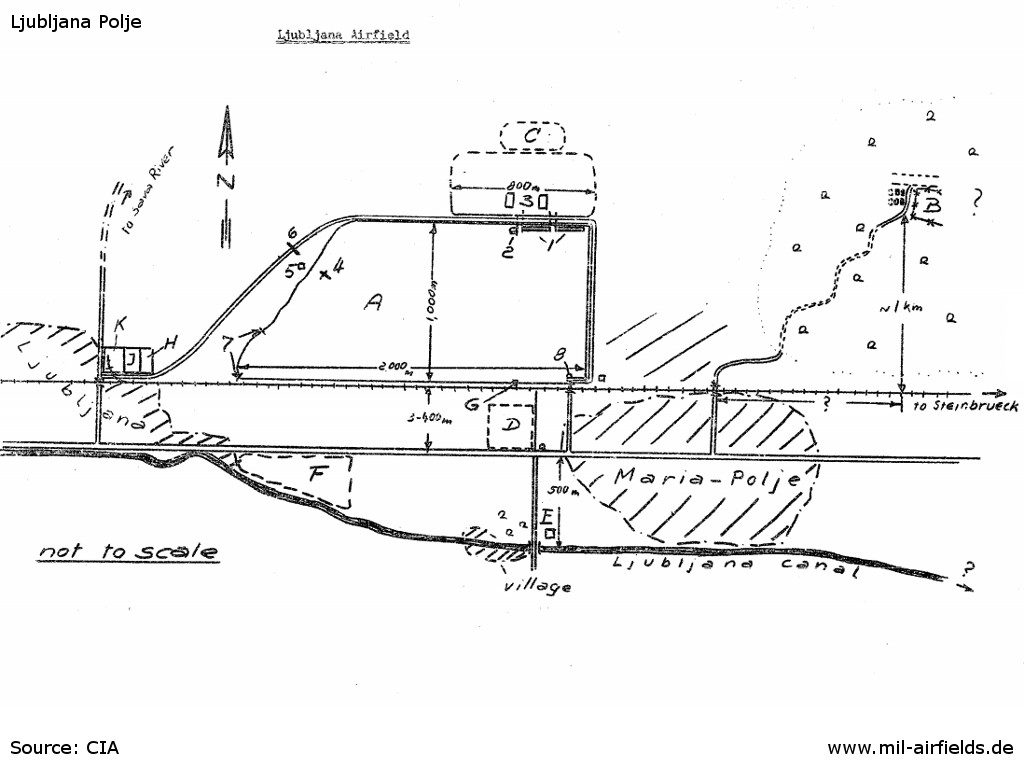

Sketch from 1948
Enlargement: Good visible are the numbered hangar sections
Source: CIA RDP82-00457R001400540009-2 (unevaluated information for the research use of trained intelligence analysts)
Ljubljana Airfield - 1 November 1948
a. During 1948, the ground south of the Ljubljana-Zagreb railroad line has been leveled as fas as the Ljubljana-Zalog national highway. An additional area of 750 by 450 meters has thereby been added to the field along the railroad to the south. As of 1 November 1948, this area had not been used for landing of aircraft but was being used as training ground for the Ljubljana garrison. The airfield was also extended to the west to take in an area about 1,000 by 500 meters which had been partly cleared of shrubbery and trees during the Italian occupation.
b. Jakob B... is now deputy airfield commander and political commissar; he is a trained pilot, about 30 years old, born in Ljubljana.
c. On 1 November 1948, there were 20 aircraft of various types on the field, including two Russian PE-2; five I-153; four Sturmovik fighter-bombers; three Spitfires; and three unidentified training planes.
d. An anti-aircraft battery consisting of three guns of Soviet origin, caliber 3.7 centimeters, is located immediately south of the airfield's first-aid station and the railroad track; another battery with three guns, also of Soviet origin, caliber 3.7 centimeters, is located in the village of Hrastje, north of the airfield; a third battery including two quadruple-barrel machine guns of German origin is located at the far southwest end of the field.
e. Two companies of the 1 Battalion of the 2 KNOJ Division guard the field. The men are billeted in the village of Slape, southeast of the field, and are transported by truck to and from the field. An additional company of the 1 Battalion is billeted in the Fusine Castle on the Ljubljanica River, south of the field.
Source: CIA RDP82-00457R002200100006-4, formerly "Secret"
Report from 1949
The Ljubljana airfield has a concrete runway 1500 by 15 meters in area. It has eight hangars, a fuel tank with a capacity of 10,000 hectoliters, equipment for night flying, six squadrons of Yak-9s, one squadron of Spitfires, and three squadrons of P-2. A new runway 40 meters wide by 1,400 meters long is under construction at the field.
Source: CIA RDP80-00809A000600140134-8 (unevaluated information)
Airfield of Ljubljana, September 1949
1 a. The LJUBLJANA (Y 2/D 31) airfield was located three miles east of the town, north of the railroad line to Maribor. Two hangars, a flight control station, a radio station, quarters, and clubhouses were located on its northern border.
1 b. A road led from the airfield to a fuel dump located to the north. The dump had ten trenches on each side of the road. In each of these trenches fifty gasoline barrels were stored in two rows, one above the other. There was also a 5,500 (?) -gallon gasoline tank. The gasoline dump was not camouflaged against air observation.
2.The airfield was occupied by about 30 fighters of Soviet make (single-engine, single rudder assembly; retractable landing gear; trapezoidal wings) and two biplanes. The pilot students were supposed to leave Ljubljana after receiving their basic training.
3. In a woods, located about one mile north of the Zalog railroad station, about 1,25 miles east of the airfield, there was an air force fuel and ammunition dump, about 1,600 x 1,000 feet, surrounded by a barbed wire fence and strictly guarded. There were one wooden shed for the storage of bombs and four semi-underground fuel tanks with a total capacity of 26,500 gallons. Trenches were being excavated for the storage of gasoline barrels. Numerous earth bunkers were filled up with aircraft and anti-aircraft ammunition.
Comment: The statements on the buildings at the Ljubljana airfield agree with previous reports. The existence of a pilot school is reported for the first time. According to previous information, the 423rd Ground Attack Regiment of the 2nd Air Division is assumed to be stationed in Ljubljana. Another ... confirmed the ammunition and fuel dump east of the airfield.
Source: CIA RDP82-00457R003400330004-8
