Hahn Air Base

Historical approach charts: EDAH, EDFH

For historical information only, do not use for navigation or aviation purposes!
CoordinatesN495652 E0071547 (WGS84) Google Maps
Elevation 1649 ft
Location indicatorEDAH (1990), EDFH (2000)
OperatorUSAF

Air Base / Airport

Region:
Rheinland-Pfalz, Hunsrück

Location indicator:
EDAH, EDFH

User:
US Air Force (USAF)

In the 1950s

NDB approach, Hahn Airfield, Germany 1954
NDB approach (January 1954) - Interim edition. (Source: US DoD)

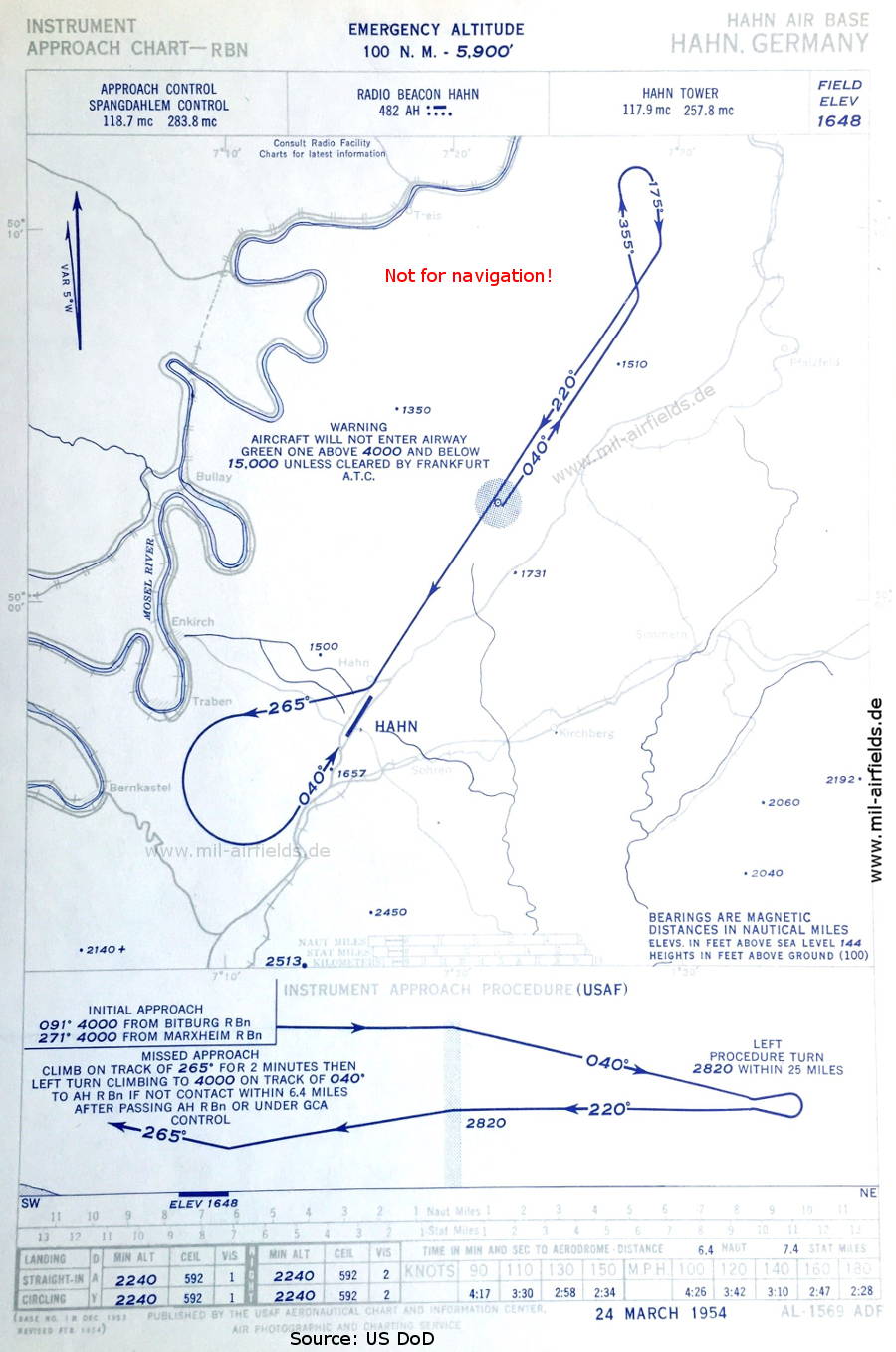

NDB approach chart Hahn Air Base, Germany 1954
NDB approach (March 1954) - In contrast to the map of January, Spangdahlem Control is now responsible, no longer Bitburg Approach Control. (Source: US DoD)
Aerodrome chart Hahn Air Base, Germany 1954
Aerodrome chart (March 1954) - There is one runway - 038/218: length 2438 m, width 46 m (8000 feet x 150 feet). (Source: US DoD)

In the 1960s

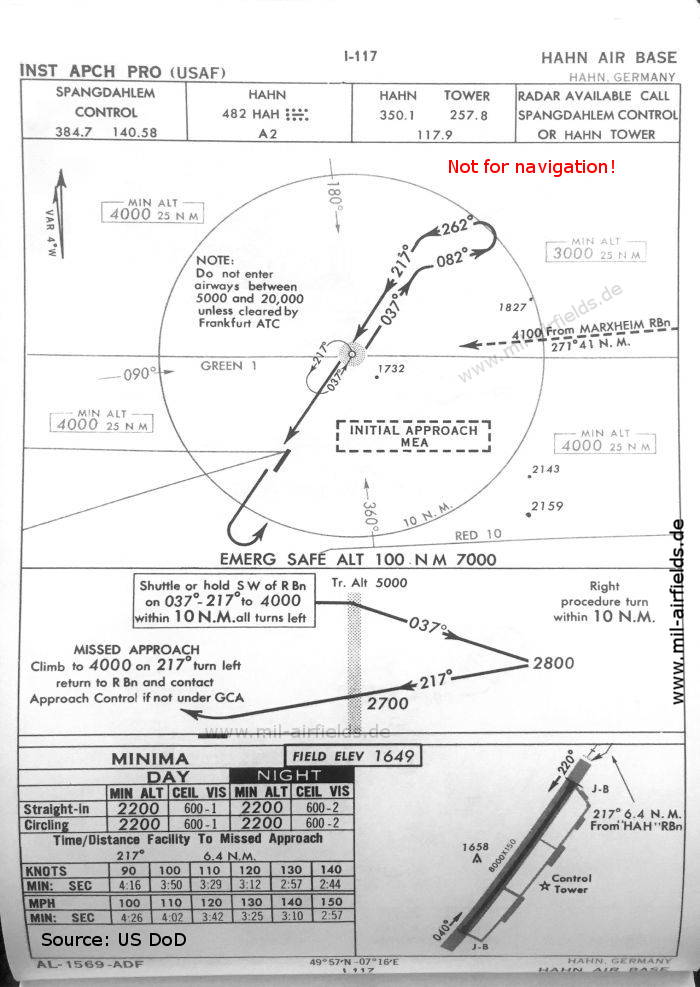

NDB approach chart runway 22 Hahn Air Base, Germany 1960
NDB approach runway 22 (October 1960) - The runway length is still shown with 2438 m (8000 feet). (Source: US DoD)

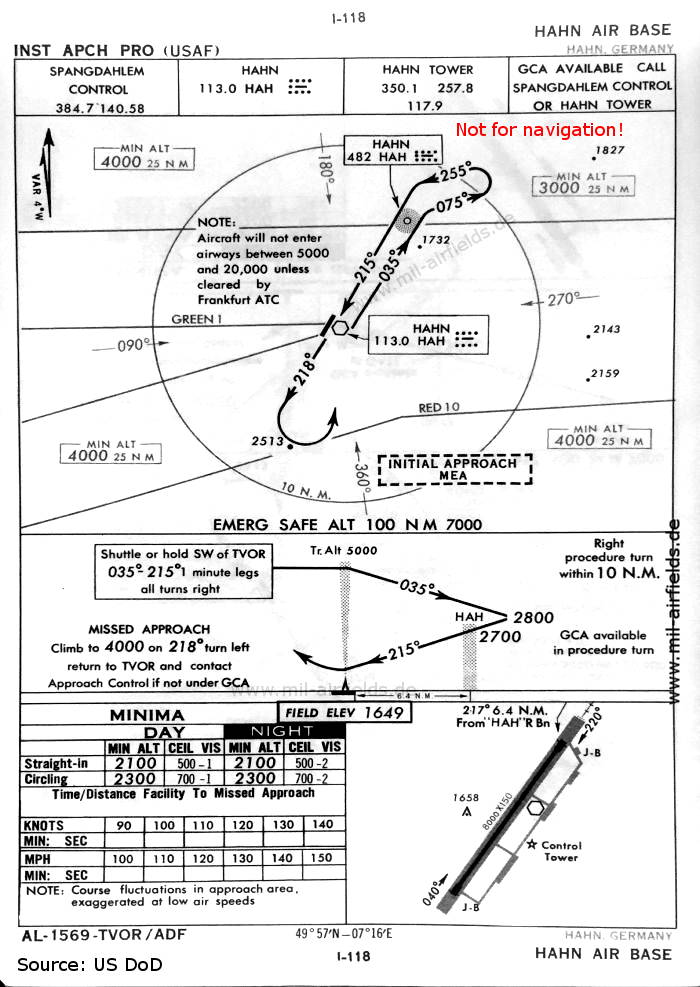

VOR approach chart runway 22 Hahn Air Base, Germany 1960
VOR approach runway 22 (October 1960) - As at many other US Air Force bases, Hahn had a VOR beacon for a few years. (Source: US DoD)
TACAN approach chart runway 22 Hahn Air Base, Germany 1960
TACAN approach runway 22 (October 1960) (Source: US DoD)

Index to the objects shown on the maps

Airspace:

  • Airway Green 1

Radio beacons:

  • Hahn NDB "AH", "HAH", VOR "HAH", TACAN "HAH"

Air traffic control

  • Bitburg Approach Control
  • Hahn Tower
  • Spangdahlem Control

Source for all maps, if not marked otherwise: US Department of Defense (US DoD)


Recommended

only 29 km away

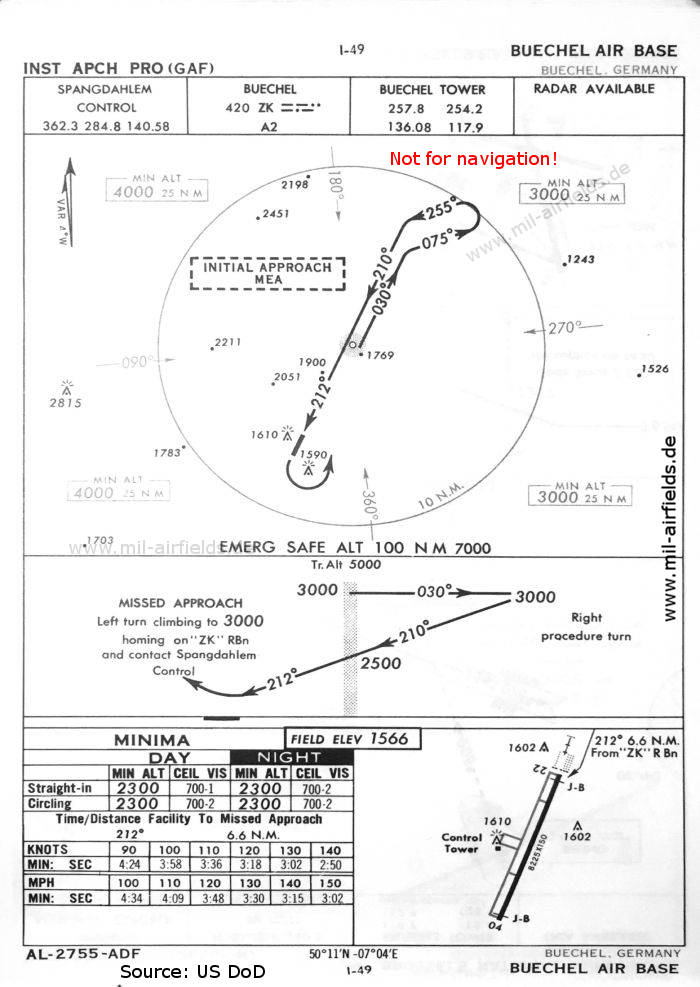

NDB approach chart runway 22 Büchel Air Base, Germany 1960
